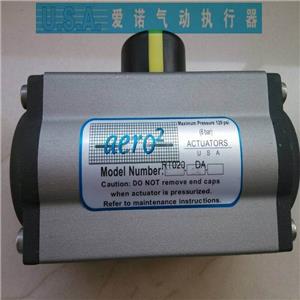

爱诺aero2气动执行器

爱诺aero2气动执行器
1、indicator?指示器
position?indicator?with?namur?is?convenient?for?mounting????accessories?such?as?limit?switch?box,positioner?and?so?on
?namur?标准指示器便于安装位置开关、定位器等附件。
2、pinion?输出轴
the?pinion?is?high-precision?and?integrative,?made?from???nickelled-alloy?steel,?full?conform?to?the?lastest?standards?of?iso5211,?din3337,?namur.the?dimensions?can?be?customized?and?the?stainless?steel?is?available.
镀镍合金钢、高精密一体式输出轴同时符合namur、iso5211、din3337标准。可根据客户要求定制尺寸和不锈钢材料。
3、actuator?body?缸体
according?to?the?different?requirements,?the?extruded?aluminum?alloy?astm6005?body?can?be?treated?with?hard?anodized,?powder?polyester?painted?(different?colours?is?available?such?as?blue,?orange,?yellow?etc.),?ptfe?or?nickel?plated.
astm6005压铸铝合金缸体可以采用硬质氧化、环氧树脂喷涂（根据要求喷涂兰色、橙色、黄色等）、ptfe涂层或镀镍满足不同要求。
4、end?caps?端盖
die-casting?aluminum?powder?polyester?painted?in?different?colours?,ptfe?or?nickel?plated
爱诺 aero2 rt2700da气动执行器压铸铝合金表面金属粉末喷涂各种颜色、ptfe涂层或镀镍处理。
5、pistons?活塞
the?twin?rack?pistons?are?made?from?die-casting?aluminum?treated?with??hard?anodized?or?made?from?cast?steel?with?galvanization.?symmetric?mounting?position,long?cycle?life?and?fast?operation,?reversing?rotation?by?simply?inverting?the?pistons.
双活塞齿条、采用铸铝硬质氧化或者铸钢镀锌处理，安装位置对称、运作迅速、使用寿命长，简单的颠倒活塞可以改变旋转方向。
6、travel?adjustment?行程调节
the?two?independent?external?travel?stop?adjustment?bolts?can?adjust?±5°at?both?open?and?close?directions?easily?and?precisely.
两个独立的行程调节螺钉可以进行方便、精确±5°的调节?开、关位置。
7、high?performance?springs?高性能弹簧
preloaded?coating?springs?are?made?from?the?high?quality?material?for?resistant?to?corrosion?and?longer?service?life,?which?can?be?demounted?safely?and?conveniently?to??satisfy?different?requirements?of?torque?by?changing?quantity?of?springs.
采用优质材料、涂层处理，预压装配。具有较强的抗腐蚀性和使用寿命。能够安全、简单的拆卸单作用执行器，通过改变弹簧数量满足不同的力矩输出范围。
8、bearings?&?guides?轴承、导板
made?from?low?friction,long-life?compound?material,to?avoid?the?direct?contact?between?metals.?the?maintenance?and?replacement?are?easy?and?convenient.
采用低摩擦、长寿命复合材料，避免了金属与金属的直接接触，维修更换简单方便。
9、o-rings?密封
nbr?rubber?o-rings?provide?trouble-free?operation?at?standard?temperature?ranges.for?high?and?low?temperature?applications?viton?or?silicone.
在常温工作条件下使用橡胶，在高温或低温时采用氟橡胶或硅橡胶。
air?to?port?a?forces?the?pistons?outwards,?causing?the?pinion?to?turn?counterclockwise?while?the?air?is?being?exhausted?from?port?b.
air?to?port?b?forces?the?pistons?inwards,?causing?the?pinion?to?turn?clockwise?while?the?air?is?being?exhausted?from?port?a.
a口进气，压缩空气推动活塞向外运动，使执行器输出轴逆时?针旋转(0o-90o)，b口排气。?b口进气，压缩空气推动活塞向内运动，使执行器输出轴顺时?针旋转(90o-0o)，a口排气。
双作用执行器输出力矩(unit:nm)
